Description

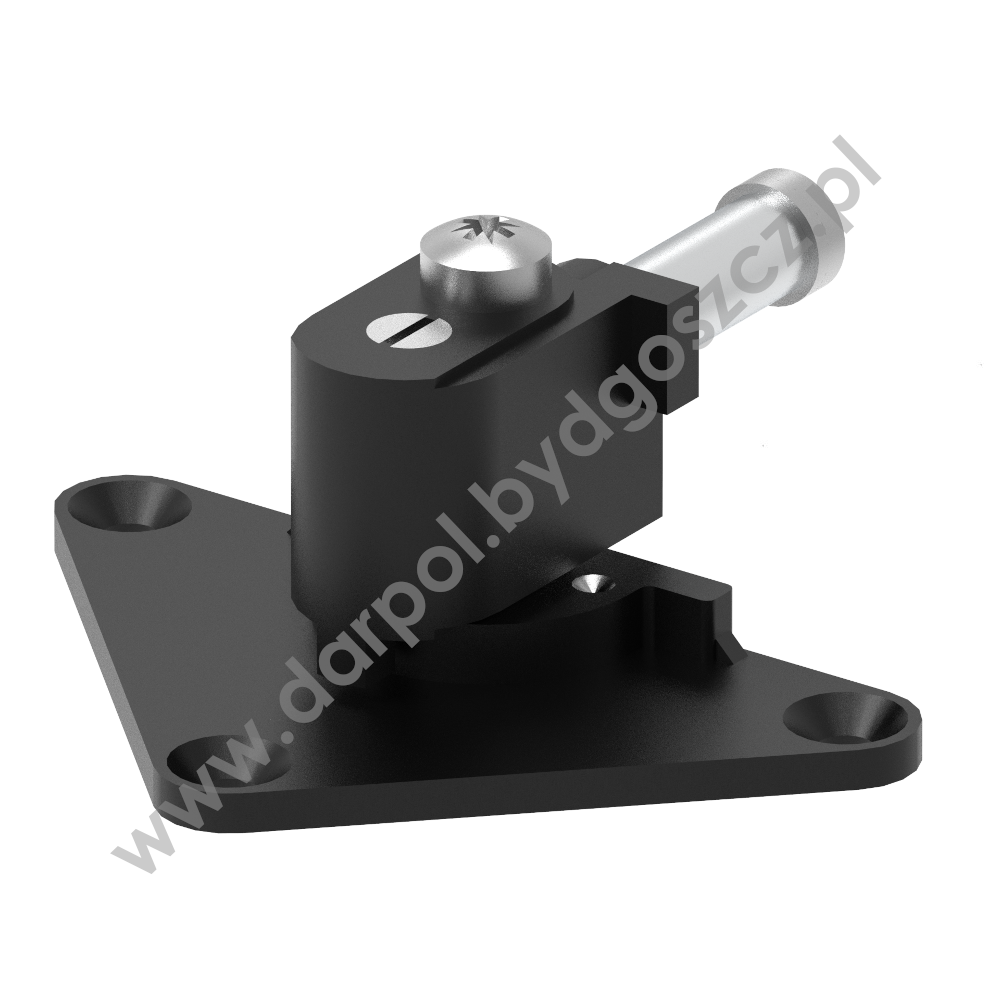

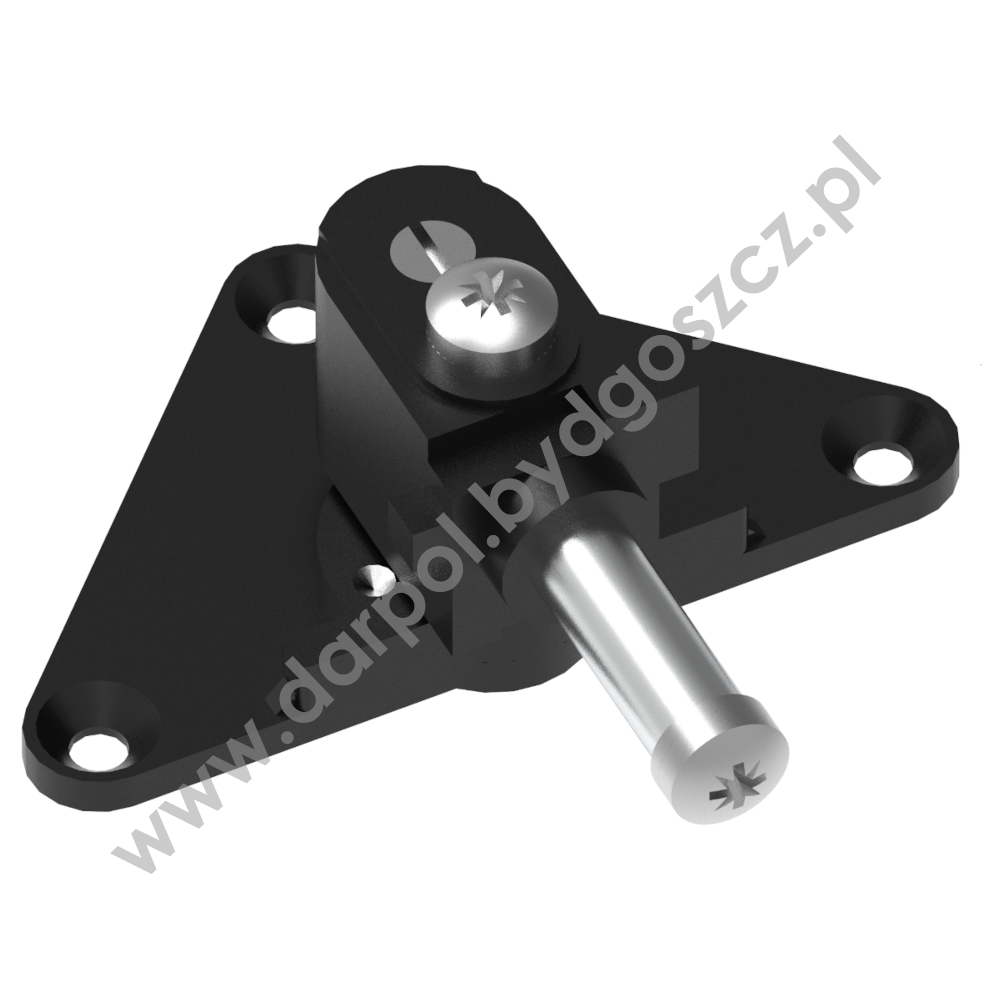

The mounting base is designed for installing an armrest table in passenger carriages. It ensures the table mechanism is securely mounted and correctly connected to the seat fittings.

The metal structure, featuring galvanised steel components, is resistant to corrosion, mechanical wear and the intensive use typical of rail transport.
The product is available in a right-hand version (DL-O 13 017-00P) and a left-hand version (DL-O 13 017-00L), allowing it to be adapted to the side on which it is to be fitted.

Benefits:
+ secure mounting of the armrest table,
+ right- and left-hand versions,
+ protection of steel components against corrosion,
+ resistance to frequent use and vibrations,
+ compact design weighing approximately 0.2 kg,
+ suitable for use in the manufacture, modernisation and repair of railway carriage equipment,
+ pre-drilled mounting holes for easy installation.

Technical data:
Material: aluminium, steel
Weight: 0.2 kg
Base width: 94 mm
Distance between outer holes: 80 mm
Shaft diameter: 10 mm
Mounting hole diameter: 5.5 mm

Application: passenger carriages, EMUs, DMUs

The product is intended for:

• armrest tables in passenger carriages,
• fitting tables to railway seats,
• repairs and replacement of worn fixings,
• modernisation of carriage interiors,
• manufacture of railway fittings.
