Description

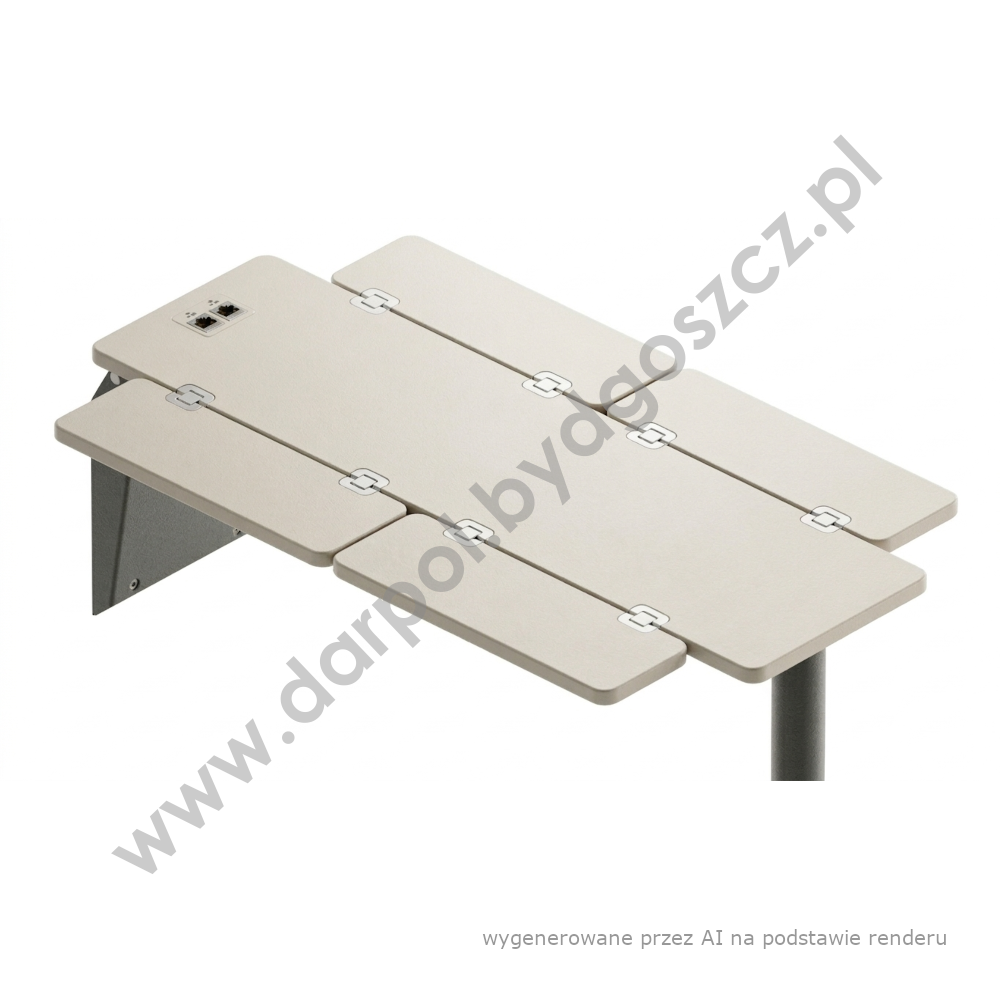

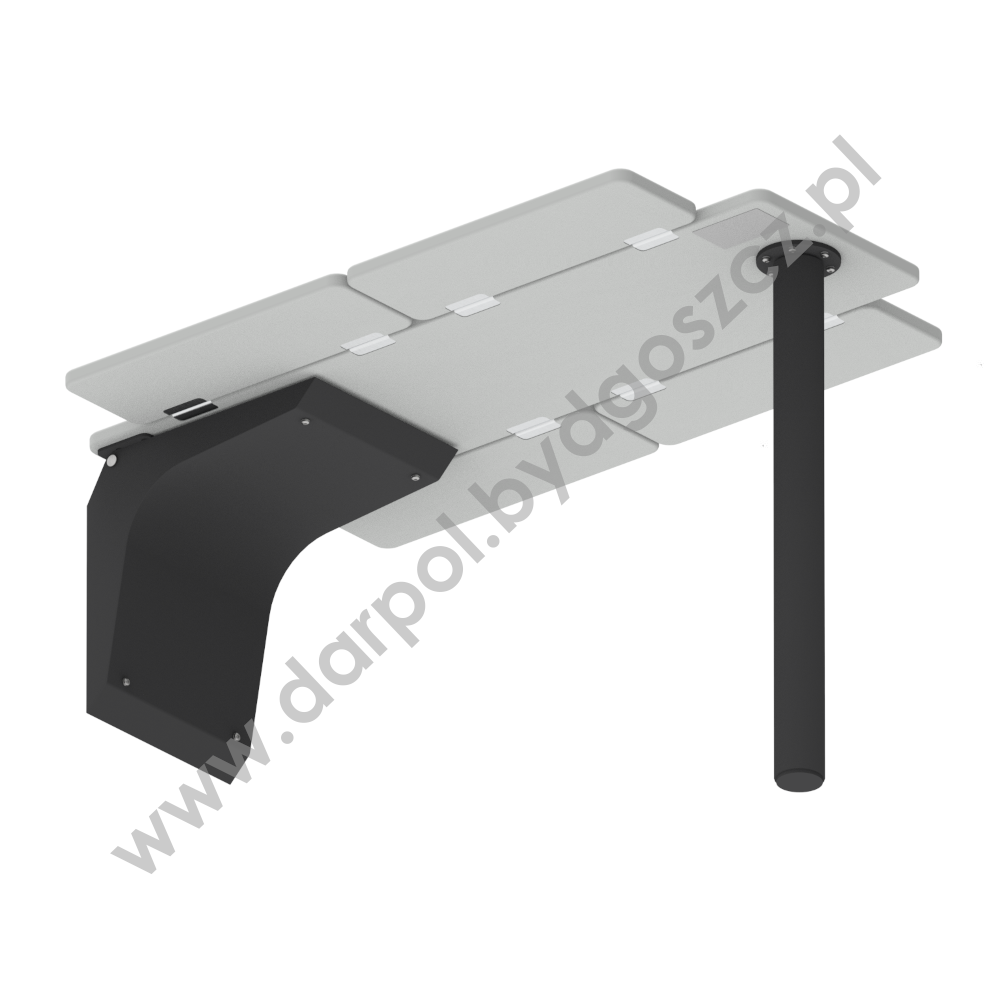

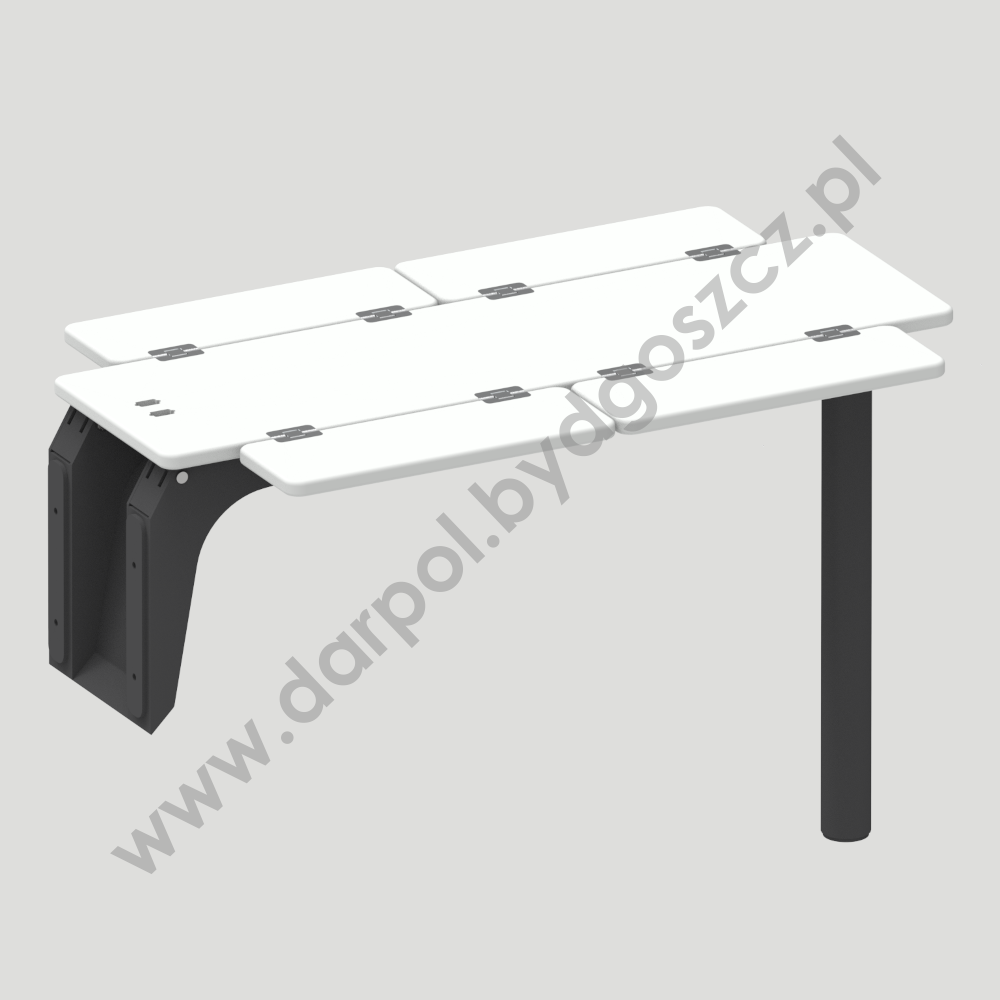

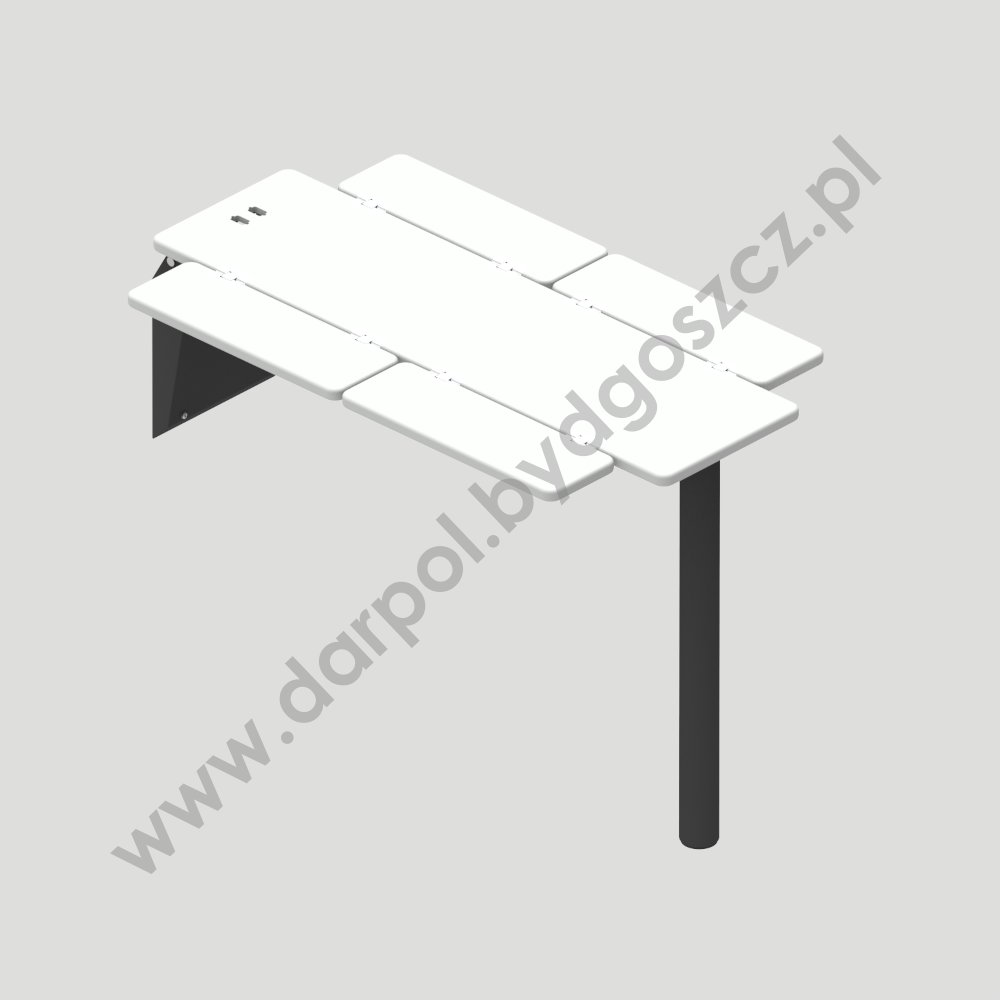

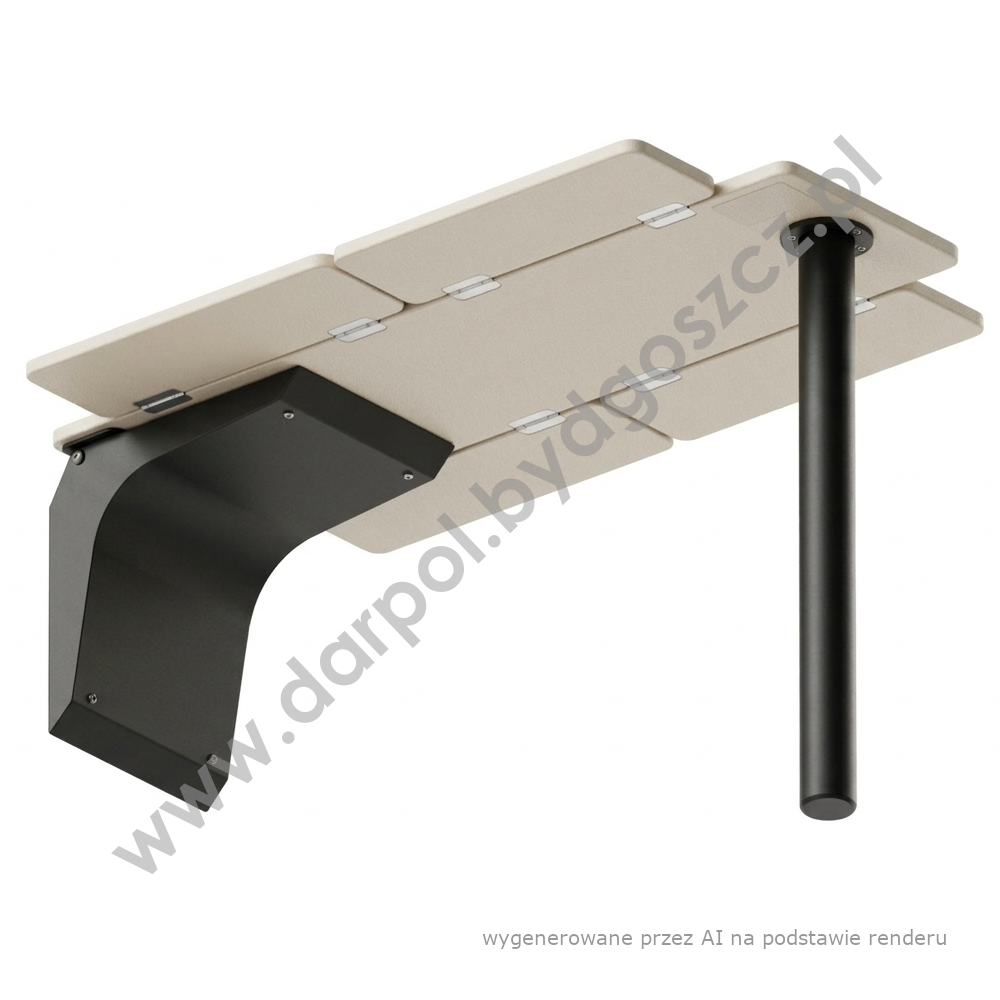

The foldable wall-mounted table for diagnostic carriages is a functional and compact solution designed for mobile work in confined spaces. Thanks to its foldable design and movable tabletop wings, it allows the work surface to be quickly adapted to the user’s current needs.

The table is mounted against the wall, allowing for maximum use of the carriage’s space. When folded, it takes up minimal space, and when unfolded, it creates a stable work surface for operating diagnostic equipment, laptops or documentation.

An additional advantage is the two built-in RJ45 sockets, located in the side mounting area, which allow devices to be connected directly to the LAN without the need for additional cabling.

Benefits:
+ Space-saving – wall-mounted design and fold-out worktop
+ Flexible workspace – movable wings enhance functionality
+ Quick folding/unfolding – convenient for mobile working
+ Network integration – 2x RJ45 ports allow direct connection of devices
+ Stability and durability – designed for intensive use in railway environments

Technical specifications:
Material: Fire-retardant plywood + HPL, aluminium, steel
Weight: ± 16.5 kg
Width of unfolded worktop: 592 mm
Length of worktop: 1067 mm
Height:  701 mm
Power sockets: RJ45

Product complies with standards: PN-EN 45545-2, PN-EN 15085, PN-EN 12663, TSI No. 1300/2014, UIC 563, UIC 566.
Application: diagnostic carriages
